Fabricator Support

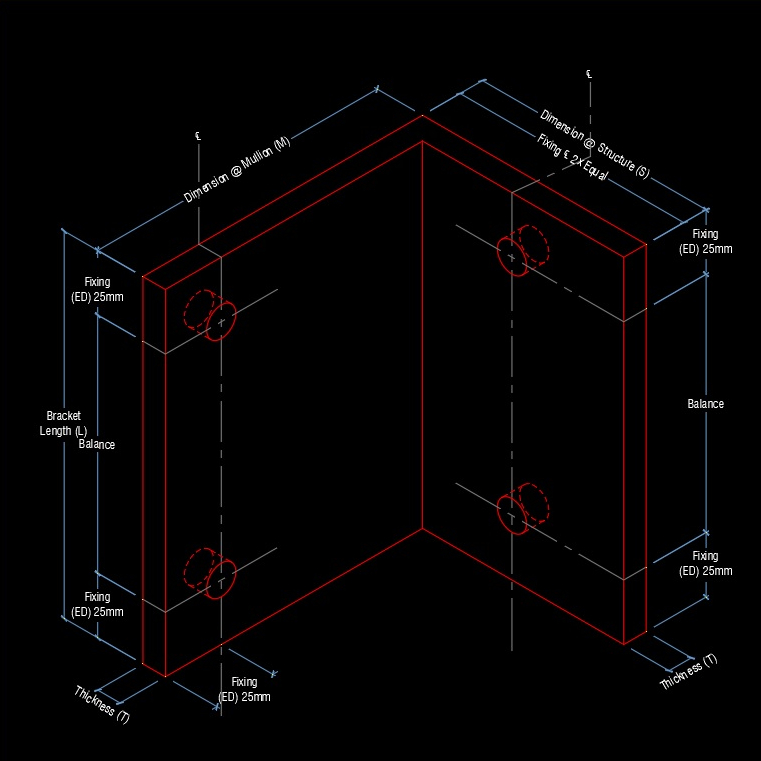

Lateral (aka Wind) Load & Dead Load Brackets
All you'll need is the tools to apply these.
We'll freight completed Brackets with fixings, customised specifically to your Project; sizes, colour, intumescent coatings exactly to your Project's specifications.

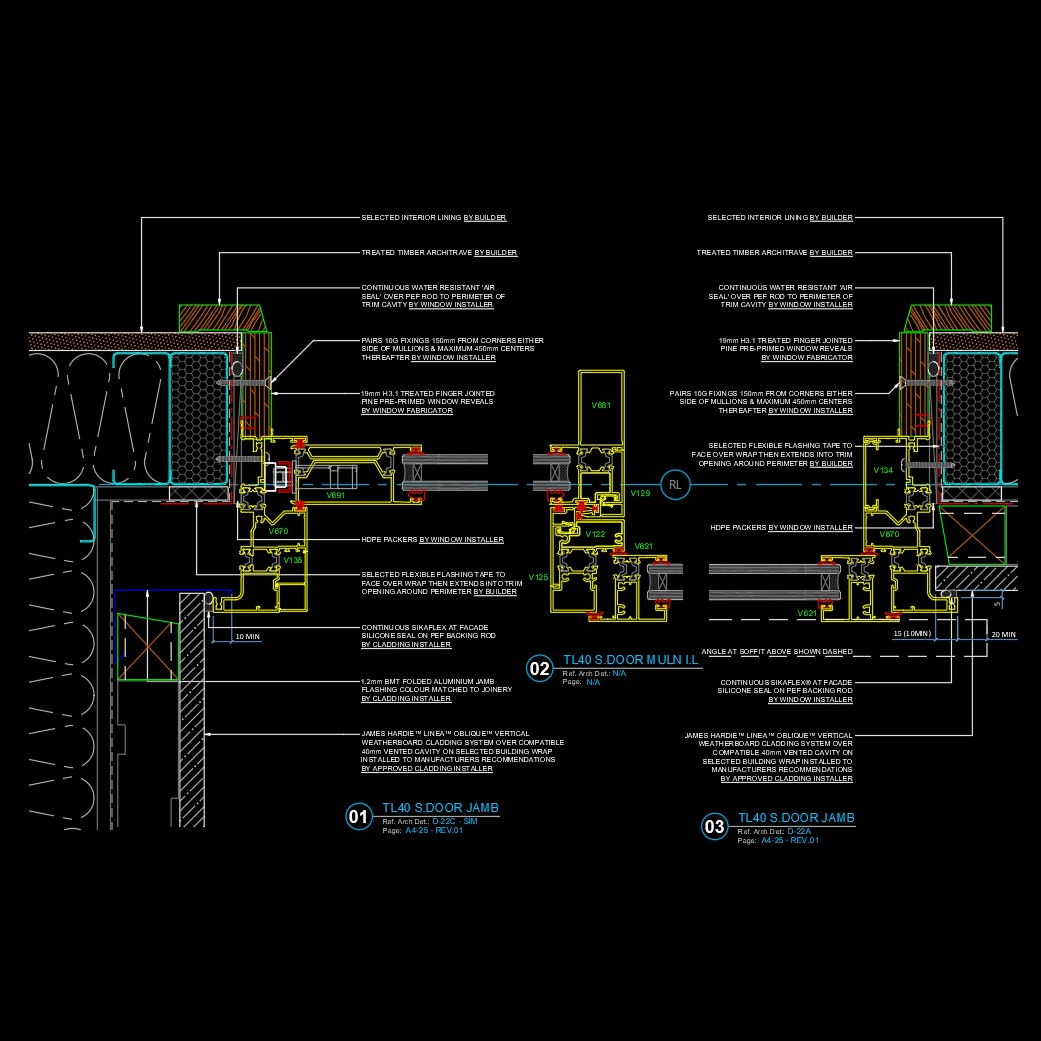

Shop Drawings
For; overwall sliding doors, schools, retirement villages, curtainwalls and other special use Buildings or joinery solutions, we propose solutions for joinery installation into a structure, compliant with NZBC, E2/AS1, meeting the Cladding Manufacturer's recommendations focusing on simple & effective joinery installation.
We also work closely with independent PS1 Engineers should that level of compliance be required.
2D/Isometric CAD Drawings
We will confidentially; create, prepare, publish and share those documents you've got sitting around your office being photocopied to oblivion for years.

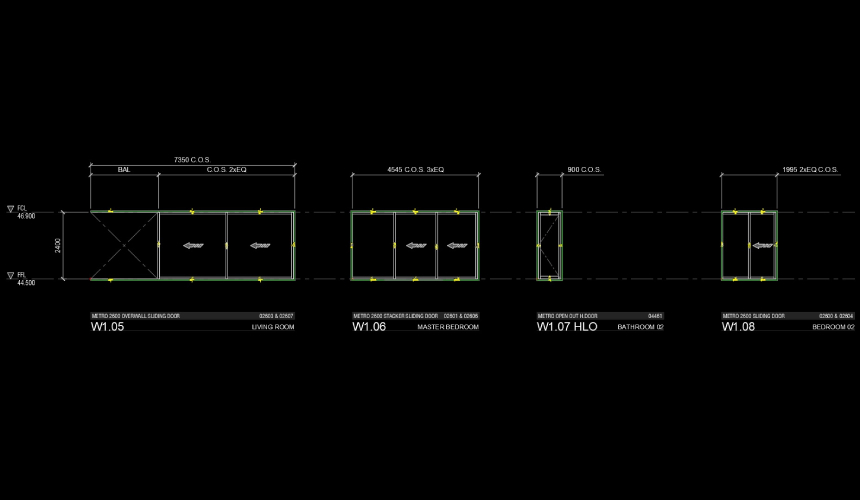

Extrusion Lay-up
Architects may request a DWG containing sections through the joinery detailing extrusions laid up for them to insert into the Architectural Drawings.
